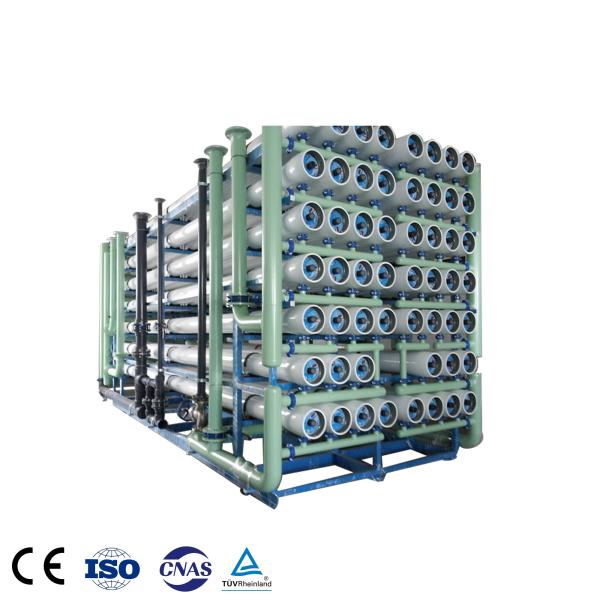

300TPH Water Purification Equipment RO Water Treatment System

Application field of reverse osmosis:

1, the electronic industry water integrated circuit, silicon chip, display tube, electrode foil and other electronic components flushing water.

2, pharmaceutical industry water transfusion, injection, tablet, biochemical products, equipment cleaning, etc.

3, chemical industry process water chemical circulating water, chemical product manufacturing, fertilizer, etc.

4, the power industry boiler supply water thermal power boilers, factories and mines in low pressure boiler power system.

5, food industry water application of purified water, drinks, beer, liquor, health products, etc.

6, seawater, brackish water desalination islands, ships, offshore drilling platforms, brackish water areas.

7, drinking water real estate, community, enterprises and institutions, etc.

8, other process water automobile, home appliance product coating, coated glass, cosmetics, fine chemicals, printing and dyeing, etc.

Ro water treatment plant concentrated water treatment process

RO water treatment process for water separation, inevitably will produce concentrated water, concentrated water is the main characteristics of the salt content is relatively large, due to strict RO water, so concentrated water chroma, turbidity, and organic matter content are relatively low. According to the characteristics of RO concentrated water, RO system can be reused after adding scale inhibitor, adjust the proportion of concentrated water and water intake, to achieve recycling; If the content of a valuable ion in concentrated water is high, the ion can be further concentrated and purified. Zhan Jinkun also verified the feasibility of RO concentrated water as ultrafiltration backwashing water, which is also a new method of RO concentrated water utilization.

Technical specification for RO water treatment system

Ro Water Treatment System Flow Chart:

Source water tank → source water booster pump → multi-media filter → activated carbon filter → cation resin softener → precision filter → primary RO reverse osmosis pure water system → secondary RO reverse osmosis pure water system → water gas mixer →Ozone sterilizer→Stainless steel pure water tank→Automatic filling line



Classic model of reverse osmosis system:

1. Preferential adsorption capillary pore model: No pore was found under weak point dry state electron microscope. The wet membrane specimens are not electron microscopic samples.

2. Dissolution diffusion model: no holes are considered.

3. Dry closed wet open model: the most appropriate modern reverse osmosis mechanism model that can explain the unity of models 1 and 2. The "dry-closed wet-open" reverse osmosis model unifies the two most classical reverse osmosis mechanism models, the fine pore model and the dissolved diffusion model.

FAQ:

1. What is the shell film material and specification of ro water treatment system?

Material of membrane case: stainless steel and fiberglass (FRP)

Specification of membrane shell: four inch membrane shell 4040 (one core to four core)

8 inch membrane case 8040 (one to seven cores)

Water inlet: end water inlet, side water inlet

2. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h

3. What is the material of mechanical filter?

Carbon steel, stainless steel, fiberglass
