36TPH Industrial RO Water Treatment System Water Purifier Machine
The latest development of RO membrane includes inorganic membrane,
hybrid membrane and novel organic membrane. Theoretically,
inorganic membrane has high ion interception performance, but its
high cost and harsh preparation conditions are not conducive to
industrial application. Hybrid membrane combines the advantages of
organic materials and inorganic materials, which has a good
application prospect in improving membrane separation performance
and anti-pollution, and has great development potential, which
needs further theoretical research. The preparation of new organic
membranes is still in the primary stage, and the main purpose is to
improve membrane flux and chemical stability, but no breakthrough
has been achieved.
Technical Specifications of RO Water Treatment System
| Model | JFRO-36T |
| Host Size | 6000x1200x1800mm (can be customized) |
| Power | 45KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 1.2~1.5MPa |
| Recovery Rate | 70% |
| Designed Water Inlet | 57t/h |
| Outlet Flow | 40t/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304/Carbon Steel (Optional) |
| Membrane Size | 8040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 42 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP |
| Number of Membrane housing | 7 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
RO Water Treatment System Process Flow
Raw water pump - sand filter - carbon filter - cartridge filter -
high pressure pump -RO membrane host machine -RO cleaning system
RO Water Treatment System Features
(1) Fast reaction rate, short processing time.
(2) a wide range of application, containing azo, carbon double
bond, nitro, halogenated structure and other difficult to degrade
organic matter has a good treatment effect.
(3) Simple process, long service life, low operating cost,
convenient operation and maintenance, stable treatment effect.
(4) High chroma and COD removal rate, improve the biodegradability
of RO concentrated water.

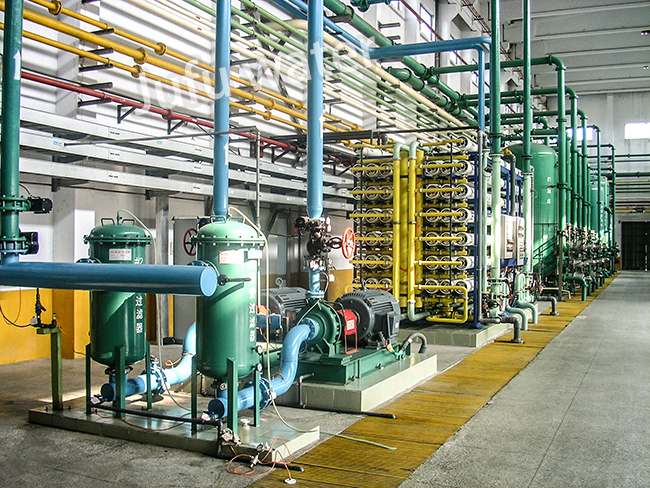

Photos and details of Reverse Osmosis Water Treatment System
FAQ:
1. RO water treatment system configuration?
First-stage multi-stage process: if the recovery rate is not
achieved in the first stage (50-65% in the first stage and 65-75%
in the second stage), the multi-stage tandem filtration can be
used. The effective cross-sectional area of each segment decreases.
2:2 and 2:3 and 4:2:1
Multi-stage process: when the first stage process cannot meet the
effluent quality requirements (the first stage is generally
≤20μs/cm), the product water of the first stage process is sent to
another reverse osmosis unit.
The arrangement of membrane components can be divided into series
and parallel.
2. What is the shell film material and specification of ro water
treatment system?
Material of membrane case: stainless steel and fiberglass (FRP)
Specification of membrane shell: four inch membrane shell 4040 (one
core to four core)
8 inch membrane case 8040 (one to seven cores)
Water inlet: end water inlet, side water inlet
3. What is the design water yield of ro membrane element? (except
anti-pollution membrane and seawater desalination membrane)
Model 4040 is designed by 0.25m3/h
Model 8040 is designed by 1-1.2m3/h
