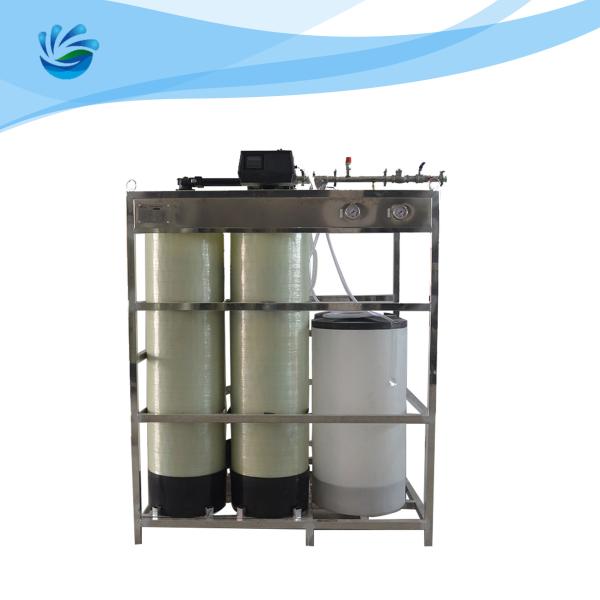

Automatic Water Softner Filter Water Hardness Treatment RO Plant
Product Description of Water Softener Treatment System
Softening water equipment is to use Yang resin to soften the main
purpose of the source water is to let
The resin adsorbs calcium and magnesium ions (the main components
of scale formation) in water and reduces the source water
Hardness, and can be intelligent resin regeneration, recycling.
1. In order to save cost, manual control system can be selected
according to the situation.
2. If the water is used continuously for 24 hours, it can be
recycled alternately according to the time used
Have a use.
3. According to water quality requirements: a multi-media filter,
used to remove water mouth
Sediment, rust, colloid and suspended matter; Secondary activated
carbon filter for water removal
The pigment, peculiar smell, biochemical organic matter, reduce the
residual chlorine value in water and pesticide pollution;
Three stage softening water equipment.
4. The quality of outlet water reaches the standard of central air
conditioning water supply.
5. Time control - timing type: flow control - metering type.
Operation, the use of single
Cans, double cans and multiple cans and other combinations. When
selecting, you can choose according to your needs.
In operation, softening water equipment products in addition to
automatic operation function, but also can be manually
Operation.
Technical specifications of Water Softener Treatment System
| No. | Model | Producing Capacity m3/h | Resin Tank(mm) D×H×unit | Salt Tank(mm) D×H×unit | Filled resin amount(kg) | Inlet & outlet Diameter (Inch) | Dimension L×W×H(mm) | Operating Mode |
| 1 | JFB-250 | 2 | 250×1400×2 | 400×800×1 | 80 | 3/4 | 150×540×1900 | Single valve and two tanks, alternate water supply Flow type |
| 2 | JFB-300 | 3 | 300×1650×2 | 400×800×1 | 120 | 1 | 160×540×1900 |
| 3 | JFB-400 | 4 | 400×1650×2 | 500×900×1 | 200 | 1 | 2200×750×2100 |
| 4 | JFB-500 | 6-8 | 500×1900×2 | 500×900×1 | 320 | 1.5 | 2300×750×2300 |
| 5 | JFB-600 | 8-12 | 600×1900×2 | 900×1200×1 | 480 | 1.5 | 2300×900×2300 |
Plant and Project Case Diagrams of Water Softener Treatment System
FAQ:
Q: What's the purchase procedure?
A:Customer send Inquiry -----we provide solution and
quotation-----customer confirm and place order-----we send
PI-----customer make first payment----we arrange
production----customer make the rest payment-----we ship goods from
our factory.
Q:What after-sale service can you provide?
A:Pick up Service ,100% factory tested before shipment,1 Year's
Quality Warranty,Solve problems within 24 hours,Technical
support&online support.
Q:What is soft water? what's the effect?
A:1.Soft water refers to water that contains no or less soluble
calcium and manesium compounds.
2. Bathe and wash with soft water to protect your skin from harm.
3.Use soft water to wash clothes to save 50%-80% detergent.
4.Soft water reduces the wear and tear of the clothes making the
clothes soft and the color stays longer.
5.Soft water reduces water heater maintenance and repair
6.Soft water reduces scale formation.
7.Soft water prolongs the service life of wading appliances.
8.Soft water reduces the maintenance and repair of the pipeline.
