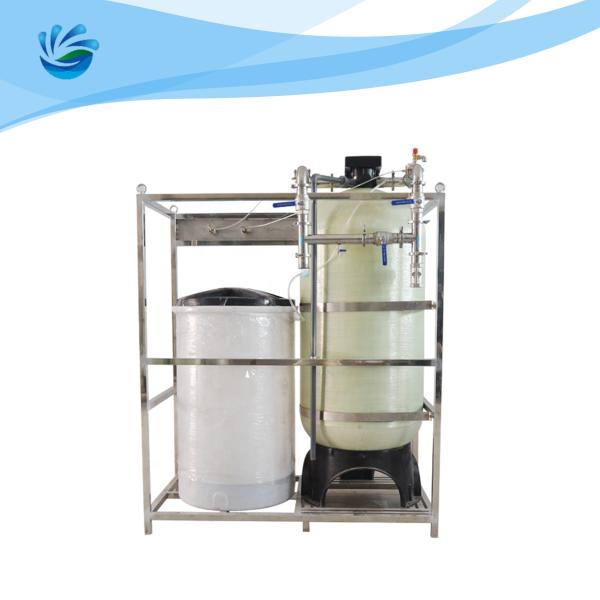

Industrial Water Softener And Purifier Plant Water Filtration
System
Softening water equipment is to use Yang resin to soften the main
purpose of the source water is to let
The resin adsorbs calcium and magnesium ions (the main components
of scale formation) in water and reduces the source water
Hardness, and can be intelligent resin regeneration, recycling.
1. In order to save cost, manual control system can be selected
according to the situation.
2. If the water is used continuously for 24 hours, it can be
recycled alternately according to the time used
Have a use.
3. According to water quality requirements: a multi-media filter,
used to remove water mouth
Sediment, rust, colloid and suspended matter; Secondary activated
carbon filter for water removal
The pigment, peculiar smell, biochemical organic matter, reduce the
residual chlorine value in water and pesticide pollution;
Three stage softening water equipment.
4. The quality of outlet water reaches the standard of central air
conditioning water supply.
5. Time control - timing type: flow control - metering type.
Operation, the use of single
Cans, double cans and multiple cans and other combinations. When
selecting, you can choose according to your needs.
In operation, softening water equipment products in addition to
automatic operation function, but also can be manually
Operation.
Technical Parameters of Water Softener And Purifier Systems
| No. | Model | Producing Capacity m3/h | Resin Tank(mm) D×H×unit | Salt Tank(mm) D×H×unit | Filled resin amount(kg) | Inlet & outlet Diameter (Inch) | Dimension L×W×H(mm) | Operating Mode |
| 1 | JFA-200 | 1 | 200×1200×1 | 300×600×1 | 20 | 3/4 | 1000×500×1800 | Single valve, single tank system, production stopped for 2 hours
during regeneration, flow rate/time type |
| 2 | JFA-250 | 1 | 250×1400×1 | 300×600×1 | 40 | 1 | 1000×500×1800 |
| 3 | JFA-300 | 2 | 300×1650×1 | 400×800×1 | 60 | 1 | 1050×540×1900 |
| 4 | JFA-400 | 4 | 400×1650×1 | 400×800×1 | 100 | 1 | 1150×540×1900 |
| 5 | JFA-500 | 6 | 500×1900×1 | 500×900×1 | 160 | 1-1.5 | 1450×750×2100 |
| 6 | JFA-600 | 8 | 600×1900×1 | 660×1200×1 | 240 | 1.5 | 1600×750×2300 |
| 7 | JFA-750 | 10 | 750×1900×1 | 760×1200×1 | 380 | 1.5 | 1600×760×2300 |
| 8 | JFA-900 | 15 | 900×1900×1 | 900×1200×1 | 550 | 2 | 1800×900×2400 |
| 9 | JFA-1000 | 20 | 1000×2000×1 | 1000×1200×1 | 750 | 2 | 2300×1100×2650 |
| 10 | JFA-1200 | 30 | 1200×2000×1 | 1200×1500×1 | 1000 | 3 | 2500×1400×2750 |
| 11 | JFA-1400 | 40 | 1400×2100×1 | 1370×1630×1 | 1500 | 3 | 3000×1400×2850 |

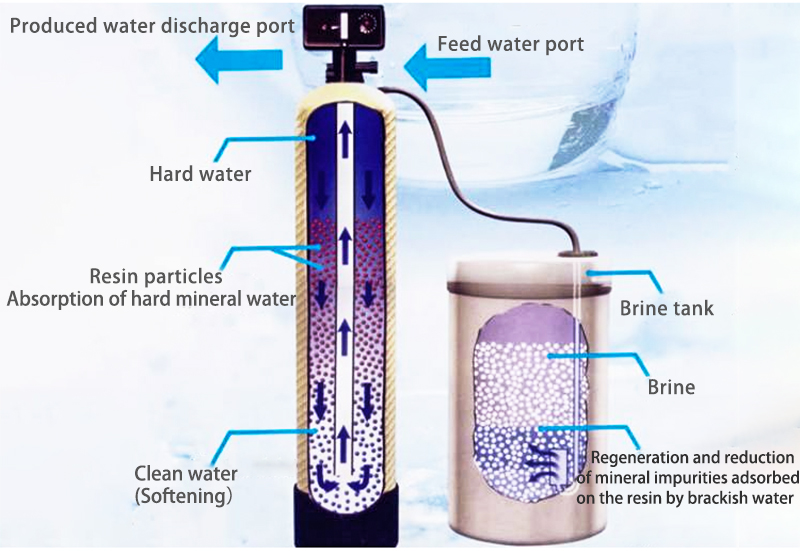

Product Workflow Chart of Water Softener And Purifier Systems
Plant and Project Case Diagrams of Water Softener And Purifier
Systems
FAQ:
Q: Which machine should I choose?
A:It depends on your raw water quality and your requirements for
permeate water.
Usually there are three parts: pretreatment, RO machine, and post
treatment. Pretreatment could be UF(ultra filtration) system,
anti-scale dosing system, flocculant dosing system, disinfectant
dosing system, water softener, sand filter, carbon filter, security
filter etc. Post treatment could be UV sterilizer, Ozonizer, ClO2
sterilizer, etc. And maybe you need an EDI system. We will choose
proper process according to your raw water quality and permeate
water purpose.
Q: What's the purchase procedure?
A:Customer send Inquiry -----we provide solution and
quotation-----customer confirm and place order-----we send
PI-----customer make first payment----we arrange
production----customer make the rest payment-----we ship goods from
our factory.
Q:What after-sale service can you provide?
A:Pick up Service ,100% factory tested before shipment,1 Year's
Quality Warranty,Solve problems within 24 hours,Technical
support&online support.
