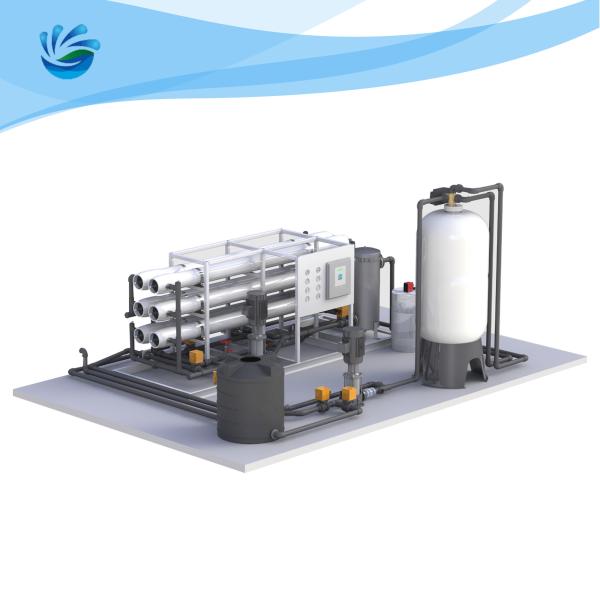

​Carbon Filter Drinking Water RO System Drinkable Pure Water 20TPH

What is the definition of Drinking Water RO System?

Drinking water ro system is a kind of reverse osmosis system with the aid of choice through (through) membrane function of pressure as the driving force of membrane separation technology, when system and the pressure is greater than in the aqueous solution of osmotic pressure, the water molecules through the membrane unceasingly, after producing water flows into the central tube, and then out in the end the impurities in the water, such as ion, organic matter, bacteria, viruses, etc., It is trapped in the inlet side of the membrane, and then flows out at the outlet end of the concentrated water, so as to achieve the purpose of separation and purification. Drinking water reverse osmosis pure water treatment system produced by pure water is the best choice for human body to supplement water quality. Meet our final water quality requirements.

Technical specifications of Drinking Water RO System

What is the working principle of Drinking Water RO System

Drinking water reverse osmosis system working principle is a container is divided into two halves, the middle of the container will have a semi-permeable membrane barrier, the container on both sides of the weak solution and concentrated solution, due to the principle of pressure difference, low concentration of the solution will flow to the high concentration.

Reverse osmosis contains the process:

1. Preprocessing
​​2. Reverse osmosis

3. Post-processing

4. Cleaning

5. Electrical control

What impurities can drinking water RO system membrane remove?

Dringking water ro system membrane can remove ions and organics well, and the removal rate of RO reverse osmosis membrane is higher than that of nanofiltration membrane. Reverse osmosis can usually remove 99% of the salt in the feed water, and the removal rate of organic matter in the influent water is ≥99%.

FAQ:

1. What is the shell film material and specification of drinking water reverse osmosis system?

Material of membrane case: stainless steel and fiberglass (FRP)

Specification of membrane shell: four inch membrane shell 4040 (one core to four core)

8 inch membrane case 8040 (one to seven cores)

2. What are the inlet water quality requirements of drinking water reverse osmosis system?

Inlet water quality requirements:

Turbidity (NTU) ≤1, SDI ≤5 Residual chlorine (mg/L) ≤0.1, Fe2+ (mg/L) ≤4, TOC (mg/L) ≤3
