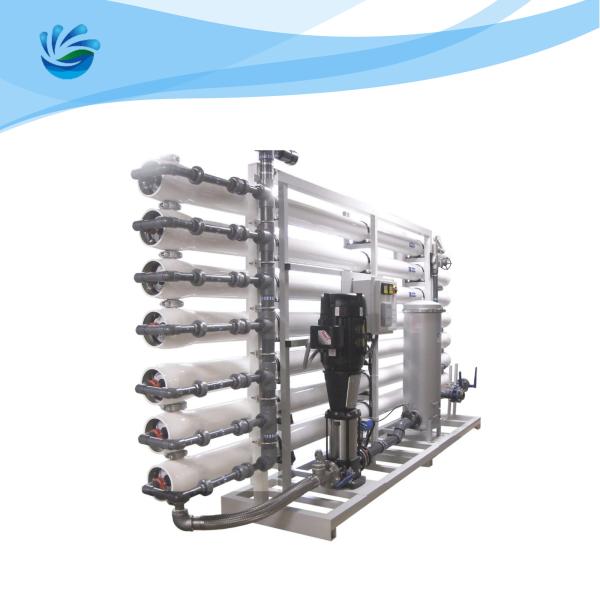

ISO Certified 30TPH Drinking Water RO Plant One-Stage RO Filter
System
What are the important indicators of drinking water reverse osmosis
system?
In the selection of reverse osmosis equipment, there is an
extremely important index - desalination rate, which determines the
quality of produced water. The abolishment rate is the percentage
of soluble impurities removed from system influent by reverse
osmosis membrane. This number can be seen from the ability of
reverse osmosis membranes to filter impurities from water.
In addition, there are organics, microorganisms, solid particles
and residual chlorine in the water, which pollute the ro membrane,
so it needs to be pretreated to avoid membrane surface blockage and
damage and reduce the desalination rate.
Drinking Water RO System workflow:
raw water - raw water tank - raw water booster pump - quartz sand
filter - activated carbon filter - scale inhibitor dosing equipment
- precision filter - first-stage high pressure pump - first-stage
reverse osmosis Host - intermediate water tank - secondary high
pressure pump - secondary reverse osmosis host - disinfection
system - production water.
Technical specifications of Drinking Water RO System
Model | JFRO-30T |
Host Size | 6000x1200x1800mm (can be customized) |
Power | 37KW |
Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Operating Pressure | 1.2~1.5MPa |
Recovery Rate | 70% |
Designed Water Inlet | 42t/h |
Outlet Flow | 30t/h |
Desalination Rate | ≥99.5% |
RO Frame | SUS304/Carbon Steel (Optional) |
Membrane Size | 8040 |
Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
Number of Membranes | 30 |
Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
Tank Material | SS/FRP(Optional) |
Control Valve | Manual/Automatic |
Control Valve Brand | FLECK/RUNXIN |
Membrane Housing | FRP |
Number of Membrane housing | 6 |
Pipe Material | U-PVC/ Stainless steel (Optional) |
Drinking Water RO system Trouble-shooting
possible reason | possible location | pressure drop | Product water flow | salt permeability |
Metal oxide | The first section | usually increases | decline | usually increases |
colloid fouling | The first section | usually increases | decline | usually increases |
fouling | The last section | increases | decline | increases |
Biofouling
| any section | usually decline | increases | Increase |
organic fouling
| all sections | normal | decline | usually increases |
Oxidizing agent (eg: Cl2)
| The first part is the most serious | usually decline | increases | Increase |
Surface wear (carbon particles,sludge) | The first part is the most serious | decline | increases | Increase |
Cracks in O-rings or glued
| random | usually decline | usually decline | Increase |
The recovery rate is too high | all parts | decline | usually decline | Increase |
FAQ:
1. What is the shell film material and specification of drinking water
reverse osmosis system?
Material of membrane case: stainless steel and fiberglass (FRP)
Specification of membrane shell: four inch membrane shell 4040 (one
core to four core)
8 inch membrane case 8040 (one to seven cores)
2. What are the inlet water quality requirements of drinking water
reverse osmosis system?
Inlet water quality requirements:
Turbidity (NTU) ≤1, SDI ≤5 Residual chlorine (mg/L) ≤0.1, Fe2+
(mg/L) ≤4, TOC (mg/L) ≤3
