1TPH Water Purification RO System Containerized Water Treatment
Plant
Product Description of Containerized Water Treatment Plant
A water treatment plant in container is a complete solution and
system.
The solution is complete with all internal piping and wiring
factory-built.
Mobile water treatment plant is reliable and cost effective, it
service to meet the problem of water crisis.
The containers can be delivered with and without insulation and can
be equipped with lighting, air-conditioning, door-in-door,
emergency shower.
The water treatment equipment fit in container(20’ or 40’), this
will reduce the cost,especially for remote areas,island regions.
The container-shaped water treatment equipment has been fixed
before delivery and can be applied to field operations and disaster
relief emergency case. Containerized water Treatment Plant is
widely applied to drinking water supply. Such as: Office building,
Market, Hotels, Organ school, Factory, Townships town, Municipal
administration.
Technical Specification of Containerized Water Treatment Plant
| Model | JF-XRO-1000L |
| Host Size | 1000x600x1600mm (can be customized) |
| Power | 2.2KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 50% |
| Designed Water Inlet | 2000L/h |
| Outlet Flow | 1000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 4040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 4 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | SS/FRP |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
| Leadtime | 2-5 weeks |
| MOQ | 1 unit |
Workflow Chart of Containerized Water Treatment Plant

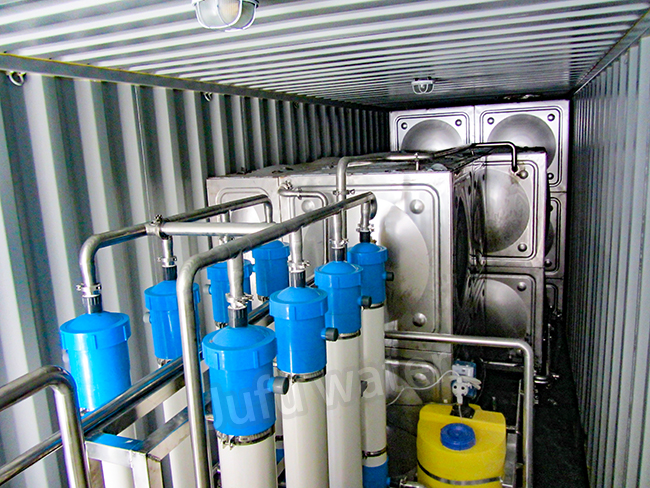

What's inside of the Container?
Activated carbon filter
Pressure filter plant
Softening plant with brine tanks
Dosing stations
Bag filters
Double-pass reverse osmosis plant
Dealkalization plant
Booster pumps
Control cabinet
Application of Containerized Water Treatment Plant
The Containerized water treatment equipment widely used in Hotels,
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food &
Beverage Factory, Farms,Retail, Printing Shops, Construction works
, Energy & Mining, Food & Beverage Shops, Chemical factory,Office
building.
Characteristics of Containerized Water Treatment Plant
Stable water producing quality;
Free of Acid-base regeneration;
Save more water from backwashing and cleaning;
No extra space needed;
Reduction on operating and maintenance costs;
Easy installtion and mainteance.
Good Performance Mature technology in Water Treatment industrial for many decades;
High effiency Multiple filtering process can guarantee high quality of the
water;
Longer lifespan Key parts are made by durable materials, it has longer lifespan to
combat with harsh environment;
Easy Installation and commissioning The containerized Water Treatment Plant can be installed before
delivery;
Quick Restoring The standard parts can be replaced if malfunction occurs, the
system can be restarted and restored very quickly;
Tailor-made Solutions Customized features can be added per customer's request.
FAQ
Q: How can I choose the products which can be perfectly match my
case?
A: Tailor-made solutions will be provided by Jufu’s professional
engineer based on your requirements.
All the pain-points of the project will be highlighted and solved
for overall optimization.
Q: What is containerization of water treatment equipment?
A: We can design and deliver our systems in insulated 20 ft or 40
ft containers. Containerization includes all piping and fittings
connected, all cables and wires connected to instrument and control
cabinet. This is a “plug and play” unit supply.
Q: Benefits of our containerized equipment?
A: Engineered to reduce overall project costs, including labor
related fees;Safe and easy installation.
