Containerized Water Treatment System Seawater Desalination Plant
Product Description of Containerized Water Treatment Plant
Containerized Water Treatment Plant integrated water pretreatment
RO water treatment system. After the whole process, 99% of
dissolved salts and harmful substances, such as river or other kind
of turbidity water will be pumped into the system and transformed
into clean and drinking water. It is also very useful to supply
clean water to people when emergency occurs such as earthquake,
flood, tsunami.
Specification of Containerized Water Treatment Plant
| Model | JFRO-2000L |
| Host Size | 2700x600x1600mm (can be customized) |
| Power | 3KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 67% |
| Designed Water Inlet | 3000L/h |
| Outlet Flow | 2000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 4040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 8 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | SS/FRP |
| Number of Membrane housing | 4 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
| Leadtime | 2-4 weeks |
| MOQ | 1 unit |
Workflow Chart of Containerized Water Treatment Plant
Features of Containerized Water Treatment Plant
1. Automatic PLC control, the manual option also available;
2. Pre-treatment solutions and multiple filtration process can be
customized per customer's request;
3. Washing plan will be set for RO system;
4. Longer product service time with high quality material;
Application of Containerized Water Treatment Plant
Dry area drinking water supply;
Irrigation for agriculture;
Commercial drinking water;
Salty removal deionized water supply;
Outdoor water supply;
Garden water supply
Characteristics of Containerized Water Treatment Plant

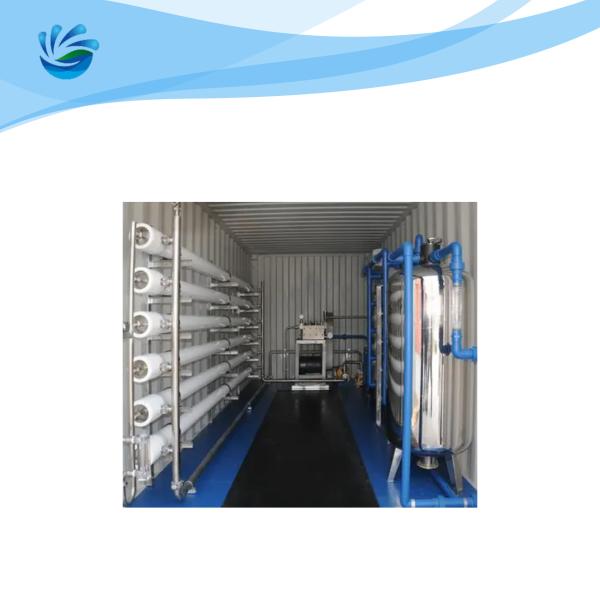

Containerized water treatment plant have lots of benefits,it
includes the complete installation of the plant: Connected piping
between equipment pumps, vessels, skids, tanks Cabling and wiring
of pumps and instrumentation inside the container to main control
cabinet.
Engineered to reduce overall project costs, including labor related
fees;
Greater productivity and less project management issues;
Safe and easy installation;
Structurally sound units, with 100% safety.
FAQ
Q: What's the advantages of containerized water treatment plants?
A: Containerized water treatment plants will have water treatment
equipment preinstalled in the container. Less operational time and
cost.
Q: What is containerization of water treatment equipment?
A: We can design and deliver our systems in insulated 20 ft or 40
ft containers. Containerization includes all piping and fittings
connected, all cables and wires connected to instrument and control
cabinet. This is a “plug and play” unit supply.
Q:How can I choose the products which can be perfectly match my
case?
A: Tailor-made solutions will be provided by Jufu’s professional
engineer based on your requirements.
All the pain-points of the project will be highlighted and solved
for overall optimization.
