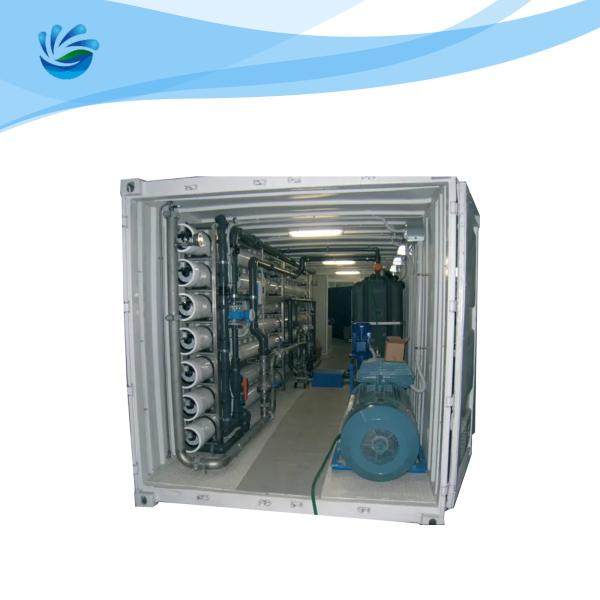

Containerized Water Treatment Plant RO Water Purifier Plant
Product Description of Containerized Water Treatment Plant
Containerized Water Treatment Plant was born to handle the water
crisis, the plants are the multifunctional solution provider to
treat water in rural areas, schools, mining sites.The containerized
water plant is secure and a compact purification plant that can be
relocated if needed.
Containerized Water Treatment Plant integrated water pretreatment
RO water treatment system. After the whole process, 99% of
dissolved salts and harmful substances, such as river or other kind
of turbidity water will be pumped into the system and transformed
into clean and drinking water. It is also very useful to supply
clean water to people when emergency occurs such as earthquake,
flood, tsunami.
Specification of Containerized Water Treatment Plant
| Model | JFRO-2000L |
| Host Size | 2700x600x1600mm (can be customized) |
| Power | 3KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 67% |
| Designed Water Inlet | 3000L/h |
| Outlet Flow | 2000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 4040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 8 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | SS/FRP |
| Number of Membrane housing | 4 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
| Leadtime | 2-4 weeks |
| Applications | Hotels, Hospitals, Camping, School |
Flowchart of Containeried Water Treatment Plant
Features of Containerized Water Treatment Plant
Lower project costs, including labor charges and releated fees;
Better productivity and less project management issues;
Safe and easy operation and installation;
Reduction in operational cost;
Automatic PLC control, the manual option also available;
Pre-treatment solutions and multiple filtration process can be
customized per customer's request;
Washing plan will be set for RO system;
Longer product service time with high quality material
Application of Containerized Water Treatment Plant
Containerized water treatment plant include industrial mining
applications, military base camps, disaster relief, groundwater
remediation, and construction facilities, all of which can either
be permanent or mobile solutions.
Dry area drinking water supply;
Irrigation for agriculture;
Commercial drinking water;
Salty removal deionized water supply;
Outdoor water supply;
Garden water supply
Why Choose Containerized Water Treatment Plant
Containerized water treatment systems have a number of key
advantages over built-in plant space installations: Short
installation process Compact foot prints Simple transportation
Mobile which is convenient for construction locations.
FAQ
Q: What's the advantages of containerized water treatment plants?
A: Containerized water treatment plants will have water treatment
equipment preinstalled in the container. Less operational time and
cost.
Q: What is containerization of water treatment equipment?
A: We can design and deliver our systems in insulated 20 ft or 40
ft containers. Containerization includes all piping and fittings
connected, all cables and wires connected to instrument and control
cabinet. This is a “plug and play” unit supply.
Q: What’s the leadtime?
A: It depends. 3-5 weeks for general products.
