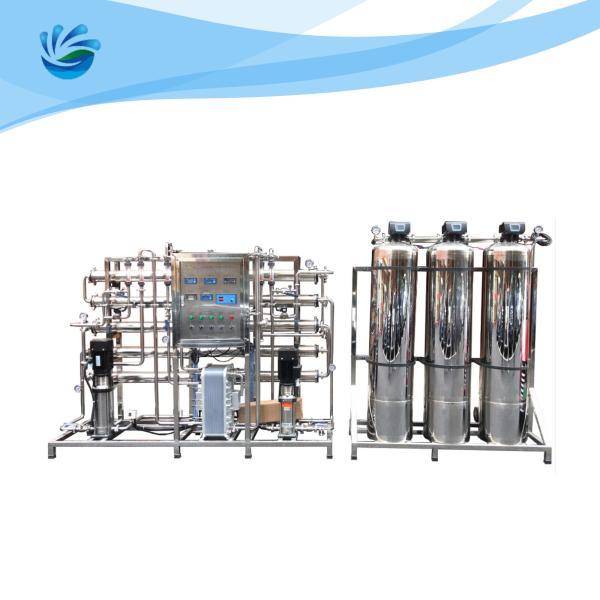

Two-stage RO 1500LPH Purified Water Generation System for
Pharmaceutical
Description of Pharmaceutical Water Purification System
Pharmaceutical purified water has certain requirements for
conductivity and ion content, etc. The primary water quality
objectives are: conductivity ≤2 liters of s/cm, heavy metal ≤0.3
liters of g/LTOC≤500 liters of g/L.In order to reach the purified
water quality requirements, the current primary choice of reverse
osmosis.
Our medical purified water system uses bipolar reverse osmosis +
EDI electrodeionization process, with high desalination rate,
stable effluent quality and reliable performance, ensuring the
stable operation of the system to a large extent.
Working Process of Pharmaceutical Water Purification System
Raw water → raw water pressure pump → multi-media filter →
activated carbon filter → water softener → precision filter →
first-stage reverse osmosis → PH adjustment → intermediate water
tank → second-stage reverse osmosis (reverse osmosis membrane
surface with positive charge )→Purification water tank→Pure water
pump→UV sterilizer→Ozone generator→Microporous filter→Water point
RO & EDI Description
RO(Reverse Osmosis), the basic working principle is : using of a
special high pressure pump, increasing pressure to raw water, then
force raw water penetrating through reverse osmosis membrane under
the pressure. Only water molecules and solvent less than microns
can pass through the RO membrane.
EDI (Electrodeionization) is a revolutionary water treatment
technology ,it is a membrane separation desalination technology
that skillfully combined the electrodialysis technology and ion
exchange technology together ,which is high-tech , green and
environmental protection technology. EDI plant has very high
requests to raw water, usually we use double stage RO system
production water as its raw water.
Pharmaceutical Water Concept
1. Purified water is obtained from specially designed purified
water equipment. This type of water source is of higher quality and
other water quality standards. It is characterized by colorless,
odorless, tasteless, clear liquid without any impurities, such as
ions, microorganisms, organic matter, bacteria, viruses, etc.
2. Purified water can be used as a solvent or test water for
formulating common pharmaceutical preparations, as well as
pharmaceutical raw materials and cleaning water for pharmaceutical
equipment. Its quality standards have a great relationship with
people's life and health, so the quality of purified water must be
better than other.
3. Other indicators are in line with the physical and chemical
indicators required in the latest edition of the Chinese
Pharmacopoeia GMP certification.
EDI Water Treatment Plant In Pharmaceutical Industry
1.System can produce water continuously and high degree automation.
2.No need chemical to regenerate, easy operation and maintenance.
3.Core components of ro system are imported USA membranes.
4.Automatic switch on when low water level, and switch off when
high water level
5.System flushes RO membranes automatically, reducing membranes
polluted speed.
6.Water shortage protection for multi-stage pump
7.Product water conductivity meter can monitor water quality online
continuously.
8.Low operation cost and long life span
FAQ
Q: What is the application of EDI?
A: EDI technology is mainly used for deep desalination of reverse
osmosis water, and it has been widely used in many fields such as
electronics, electric power, biology, pharmacy, chemical industry
and so on.
Q: What’s the leadtime?
A: It depends. 3-5 weeks for general products.
Q: What’s your warranty?
A: Jufu offers 1 year warranty for the products.
The product itself can work for 5 years with proper use and
maintenance.
