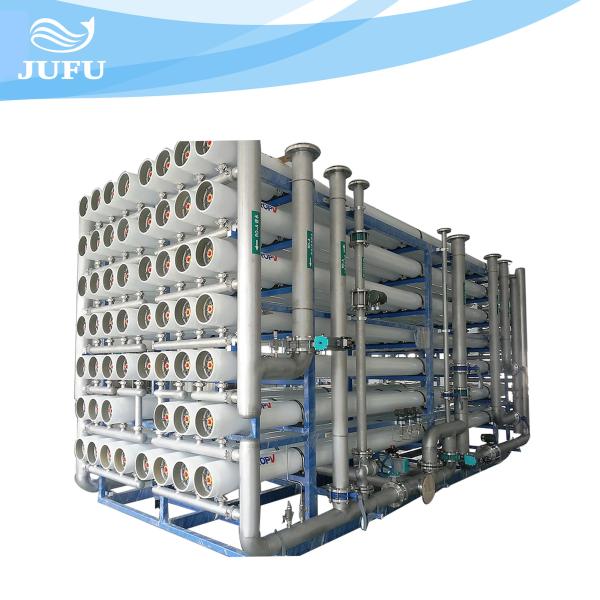

300TPH RO Water Treatment System For Power Plant Boiler Water Supply

Reverse osmosis system (RO Water Treatment System)is an important part of water treatment system, which is widely used to produce pure water and drinking water. It is usually composed of three parts: raw water pretreatment system, reverse osmosis purification system and ultra-purification post-treatment system. It is the most economical and efficient purification method to remove more than 98% ions, organic matter and 100% microorganisms in raw water at one time (theoretically). Our device can manufacture drinking water, mineral water, pure water and drinking water sources: ground, spring, well, river, salt water, lake and so on.

Principle of Ro Water Treatment System

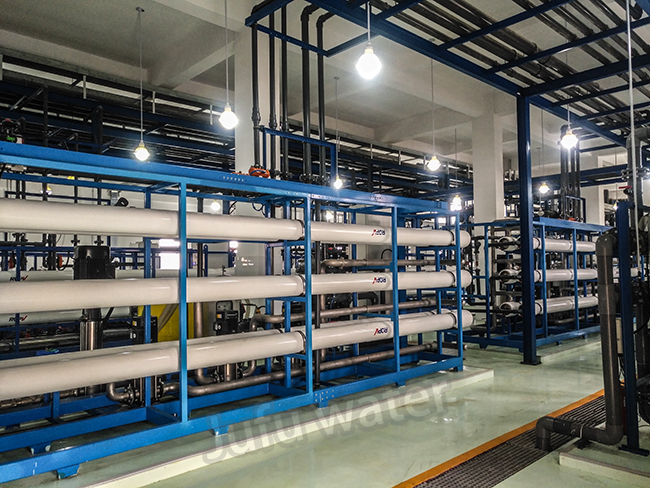

When a pressure greater than the osmotic pressure is applied to the brine side of the membrane, the direction of water flow is reversed, and the water in the brine will flow into the freshwater side, a phenomenon called reverse osmosis.The reverse osmosis system includes high pressure pump, reverse osmosis membrane element, pressure vessel (membrane shell), cleaning system and control instrument.

Technical specification for RO water treatment system

Ro Water Treatment System Flow Chart:

Source water tank → source water booster pump → multi-media filter → activated carbon filter → cation resin softener → precision filter → primary RO reverse osmosis pure water system → secondary RO reverse osmosis pure water system → water gas mixer →Ozone sterilizer→Stainless steel pure water tank→Automatic filling line




Excellent Characteristics of Ro Water Treatment System:

1, Reverse Osmosis is a physical method to desalinate and purify water containing salt under room temperature without phase change. At present, the desalination rate of ultra-thin composite membrane elements can reach more than 99.9%, and can simultaneously remove colloids, organic matter, bacteria, viruses from water;
2, Water purification relies solely on the pressure of the water as the driving force, and its energy consumption is the lowest among other water treatment methods;
3; Reverse osmosis can run continuously to produce water, the system is simple and easy to operate, and the producing water is stable with good quality;
4, No chemical waste discharge, No waste acid and alkali neutralization process, no environmental pollution;
5,The reverse osmosis plant is highly automated with less time spending on operation and maintenance;
6, Compact size requires small space for operation and placement;
7, The removal rate of colloid such as silica and organic matter in water can reach 99.5%;
8, The reverse osmosis plant can produce water continuously without any extra operation such as regeneration;
9, It is adapted to the treatment of both brackish water and seawater, as well as freshwater treatment with low salt content.

Ro Water Treatment System is used in the preparation of space water, purified water, distilled water, etc. Water for alcohol manufacture and tempering; Preliminary preparation of water for pharmaceutical and electronic industries; Chemical process of concentration, separation, purification and water preparation; Boiler supply water desalting soft water; Seawater, brackish water desalination; Water and wastewater treatment in papermaking, electroplating, printing and dyeing industries.

FAQ:

1. What is the shell film material and specification of ro water treatment system?

Material of membrane case: stainless steel and fiberglass (FRP)

Specification of membrane shell: four inch membrane shell 4040 (one core to four core)

8 inch membrane case 8040 (one to seven cores)

Water inlet: end water inlet, side water inlet

2. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h

3. What is the material of mechanical filter?

Carbon steel, stainless steel, fiberglass
