Industrial Ultra Pure Water Treatment System RO Plant With EDI

EDI System

EDI system is a process in which mixed ion exchange resin is used to adsorb anions and cations in feed water, and at the same time, the adsorbed ions are removed through anion and cation exchange membranes respectively under the action of DC voltage.

EDI system consists of three elements

EDI technical standard, EDI software and hardware, and EDI technical communication network. The EDI device consists of a booster pump, an electrodeionization (EDI) membrane block, a DC stabilized power supply, a flow meter, and a meter.

Technical Specifications of EDI Water Treatment Plant

The Working Process of EDI Water Treatment Plant

In the EDI membrane block, a certain number of EDI units are separated by grids to form a concentrated water chamber and a fresh water chamber. In turn, negative/positive electrodes are provided at both ends of the cell. Driven by direct current, the anions and cations in the water flow through the fresh water chamber migrate to the concentrated water chamber through the anion and cation exchange membrane respectively and are removed in the fresh water chamber. As shown below:


What is the most important part of EDI work?

EDI membrane stack is the core of EDI work. The membrane stack is a unit composed of anion and cation exchange membranes, thin and concentrated water compartment separators, ion exchange resins and positive and negative electrodes arranged and clamped according to certain rules. The fresh water chamber in the membrane stack is equivalent to a mixed bed. The ion exchange resins used are sulfonic acid type cation resin and quaternary amine type anion resin. The resin in the fresh water chamber must be packed tightly.

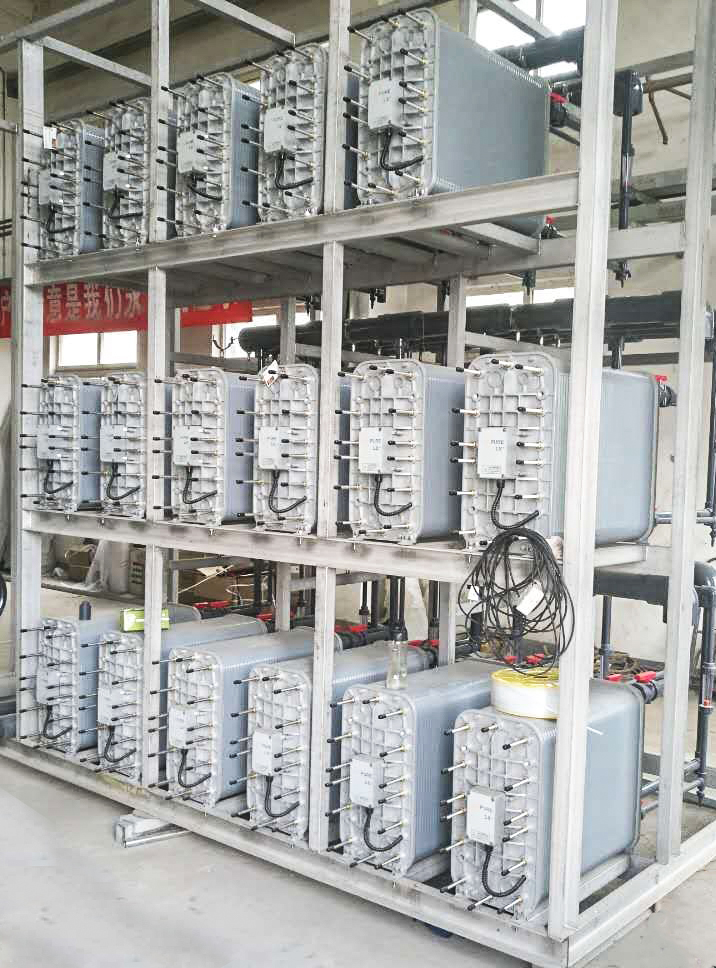

EDI Modules

Product Photos




Application of EDI Water Treatment Plant

⊙Power plant chemical water treatment
⊙Ultrapure water for electronics, semiconductor and precision machinery industries
⊙ Pharmaceutical industry process water
⊙ Preparation of food, beverages and drinking water
⊙ Desalination of sea water and brackish water
⊙ Water for fine chemicals and advanced disciplines
⊙ Preparation of high purity water required by other industries



Our advantages, Jufu Water Purification Five Guarantees:

01 Focus on water treatment equipment for 14 years, the quality is trustworthy;
02 The product passed the ISO9001 quality system standard production
03 Provide free water treatment solutions;
04 Door-to-door installation service can be provided;
05 Provide lifetime after-sales service.



Pre-sale service:

1. Inquiry and purchase consultation.
2. Raw water test support.
3. Visit our factory

After-sales service:

1. Training how to install the machine, training how to use the machine
2. Lifetime online and telephone technical support services.
3. Overseas mechanical maintenance engineer on-site service installation or maintenance.


Here's a guide to getting the best offer

1. What is the source water to be treated? Industrial wastewater, tap water, well water, groundwater or seawater? Is there a water quality analysis report for conductivity?
2. How much capacity water treatment system do you need? 1000 liters per hour, 5000 liters per hour or more?
3. What is the purpose of outputting purified water? Drinking water, food, beverage manufacturing, industrial use or medical production use?

Jufu Water is a Hi-tech enterprise which specialized in integrating Research & Development, Manufacturing, Sales, Engineering installation and Consulting on water treatment and water purification equipment and technologies.

Jufu has strong power on know-how solution providing. The water business including water and wastewater treatment equipment supply, industrial process water, recycling and reuse solutions.

The main category of the products not limited to:

Ultrafiltration equipment, Nano-filtration equipment, Reverse osmosis equipment, EDI electric desalination equipment, Direct piped drinking water equipment, Medical purified water equipment, Water softening equipment, MBR integrated wastewater treatment equipment, Waste permeates treatment equipment.

Jufu Water Tech has supplied our water purification and water treatment equipment products and service to more than 30 provincial and cities in China domestic market based on our reliable quality, reasonable price and perfect after-sales service network. With the aim of “Water Treatment Equipment Expert Worldwide!”, Jufu has successfully promoted its product into the global Water purification and water treatment field. Right now products from Jufu has successfully access to Southeast Asia, Middle East, South American and Africa market.

In the future, Jufu will continue to move forward with relentless efforts, and actively advocate "Safe, Clean and Pure" to achieve business vision of being a Top-class Water purification and water treatment products manufacturer, and an excellent Water engineering service provider
