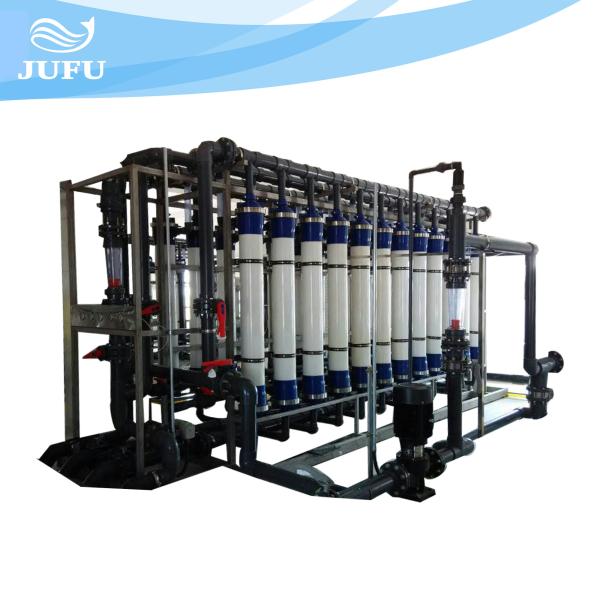

Ultrafiltration Water Treatment System 60TPH Water Purifier With UF
Membrane Filter
Ultrafiltration technology is a kind of nano membrane separation
technology, hollow fiber ultrafiltration process with hollow fiber
membrane as the filter medium, with membrane silk inside and
outside differential pressure as the driving force, according to
certain filter aperture on different physical diameter size of
material in the solution of separation process, in order to achieve
the purpose of the solution purification, separation, purification,
concentration. Ultrafiltration can intercept particles and
impurities between 0.002 ~ 1μm, and the molecular weight of
ultrafiltration membrane is generally between 1,000 ~ 10,000, and
the molecular weight of ultrafiltration membrane is usually between
50,000 ~ 100,000 as reverse osmosis pretreatment.
Technical Specifications of Ultrafiltration Water Treatment System
| UF System |
| Model | JFUF-60T |
| Host Size | can be customized |
| Operating Pressure | 0.1-0.3MPa |
| Recovery Rate | 85% |
| Rack Material | SUS304/Carbon Steel (Optional) |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
| Ultra-filtration Membrane | PVC/PAN/PVDF (Optional) |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Outlet Flow | 60t/h |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
Working Principle of Ultrafiltration Water Treatment System
Ultrafiltration is a pressurized membrane separation technology,
that is, under a certain pressure, small solute and solvent pass
through a special membrane with a certain aperture, while the large
molecule solute cannot pass through, stay on one side of the
membrane, so that the large molecule material is partially
purified.
Working Process flow chart of Ultrafiltration Water Treatment System
Raw water →→ raw water pump → quartz sand filter → softener →
activated carbon filter → security filter → ultra-filtration device
→ ultraviolet sterilizer (ozone generator)→ pure water tank → water
supply point
Technical parameters of Ultrafiltration Water Treatment System
Material: Polyacrylonitrile (PAN), polyethersulfone (PES),
polyvinyl chloride (PVC), polysulfone (PS), polyvinylidene fluoride
(PVDF)
Purpose: hollow fiber ultrafiltration membrane, electrophoretic
paint ultrafiltration membrane, curtain TYPE MBR membrane, plate
TYPE MBR membrane, tube type ultrafiltration membrane
Operation mode: internal pressure type, external pressure type
Operating pressure of hollow fiber ultrafiltration membrane:
0.1-0.3mpa
Shell material: ABS, PVC, PMMA, stainless steel
Size: 4 ", 6 ", 8 ", 10 "(different sizes)
Theoretical water yield of single membrane: 4 ": 0.5-1m3/h 8" :
3-4.5m3/h
Design water yield: 4 ": 0.5m3/h 8" : 2-2.5m3/h
Arrangement of hollow fiber ultrafiltration membrane: parallel
connection
Recovery rate: 85%-90%
Advantages of Ultrafiltration Water Treatment System
1. Ultrafiltration membrane element The best quality organic
membrane element in the world, thus ensuring interception
performance and membrane flux.
2. The system has high recovery rate, the product quality is
excellent, and the material can be separated, purified and
concentrated efficiently.
3. No phase change process, composition of the material without any
adverse effects, and in the process of separation, purification,
concentration remain the state of the normal temperature,
especially suitable for the processing of heat sensitive material,
completely avoid the high temperature and the disadvantages of
destruction of bioactive substances, effectively keep the bioactive
substances in raw material system and nutrients.
4. The system has low energy consumption and short production
cycle. Compared with the traditional process equipment, the
operating cost of the equipment is low, which can effectively
reduce the production cost and improve the economic benefits of
enterprises.
5. Advanced process design, high degree of integration, compact
structure, small footprint, simple operation and maintenance, low
labor intensity of workers.
6. The control system can be personalized design according to the
specific requirements of users, combined with advanced control
software, on-site centralized monitoring of important process
operation parameters, to avoid manual misoperation,
multi-directional to ensure long-term stable operation of the
system.
Application of Ultrafiltration Water Treatment System
Ultrafiltration in pure water, ultra-pure water and other water
treatment applications: boiler supply water, industrial high pure
water, medical pure water, food water and so on.
Application of ultrafiltration in industrial wastewater reuse
treatment: recycling of circulating water, cooling water, injection
water and collection water of petroleum, chemical industry, steel
mill, power plant, electroplating, printing and dyeing industrial
wastewater.
Application of ultrafiltration in special separation and
concentration fields: milk concentration, protein concentration,
enzyme product concentration, starch recovery, electrophoresis
paint recovery, vinegar clarification.
Application of ultrafiltration in drinking water: mineral water,
pure water, food and beverage water, tap water, rural drinking
water treatment.
