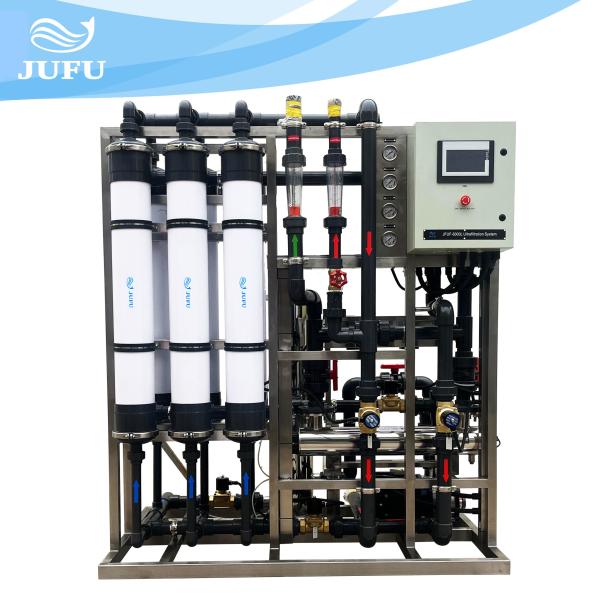

Frp Tank Automatic Valves Easy Operation Uf Purification Machinery

What is Ultrafiltration Water Treatment System?

1.uf water purifier use automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.

2.uf system has protected when no power, poor power, larger electrical current, leakage, short circuit.

3.ultrafiltration system is compact, easy installation.

4.Ultrafiltration system equipped with manual and auto control based on user needed.

5.Uf system produce as per ISO standard and main parts accessories have obtained CE certification.

6. uf water purifier will be commissioning well. Make sure don't have any problem when arrived site.

What is the principle of Ultrafiltration Water Treatment System?

In the process of ultrafiltration, aqueous solution under pressure, flow through the membrane surface, less than the membrane hole of the solvent (water) and small molecules of solute permeable membrane, become purification liquid (filtration liquid), than the membrane hole and solute group are trapped, with water discharge, become concentrated liquid.

Technical Specifications of Ultrafiltration Water Treatment System

Process flow of Ultrafiltration Water Treatment System

Raw water + original water tank + original water pump + sand filter + carbon filter + security filter + UF system + pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply point

The application of ultrafiltration system in pharmaceutical and biological chemical production, often need to separate and purify the heat-sensitive substances, ultrafiltration technology shows its outstanding advantages. Using ultrafiltration to separate and concentrate biological active substances (such as enzymes, viruses, nucleic acids, special proteins, etc.) is quite suitable for drugs (such as alkaloids, hormones, etc.) extracted from plants and driven by the extraction of macromolecules or solid substances, in many cases can be separated by ultrafiltration, so as to improve the quality of products.

Characteristics of Ultrafiltration Water Treatment System

(1) Ultra-high interception rate :99.9999%

(2) Maximum inlet pressure: 0.2mpa

(3) MWCO:6000 Dalton, 10000 Dalton, 100000 Dalton, 200,000 Dalton

(4) Application: removal of pyrogens and endotoxins in pharmaceutical industry

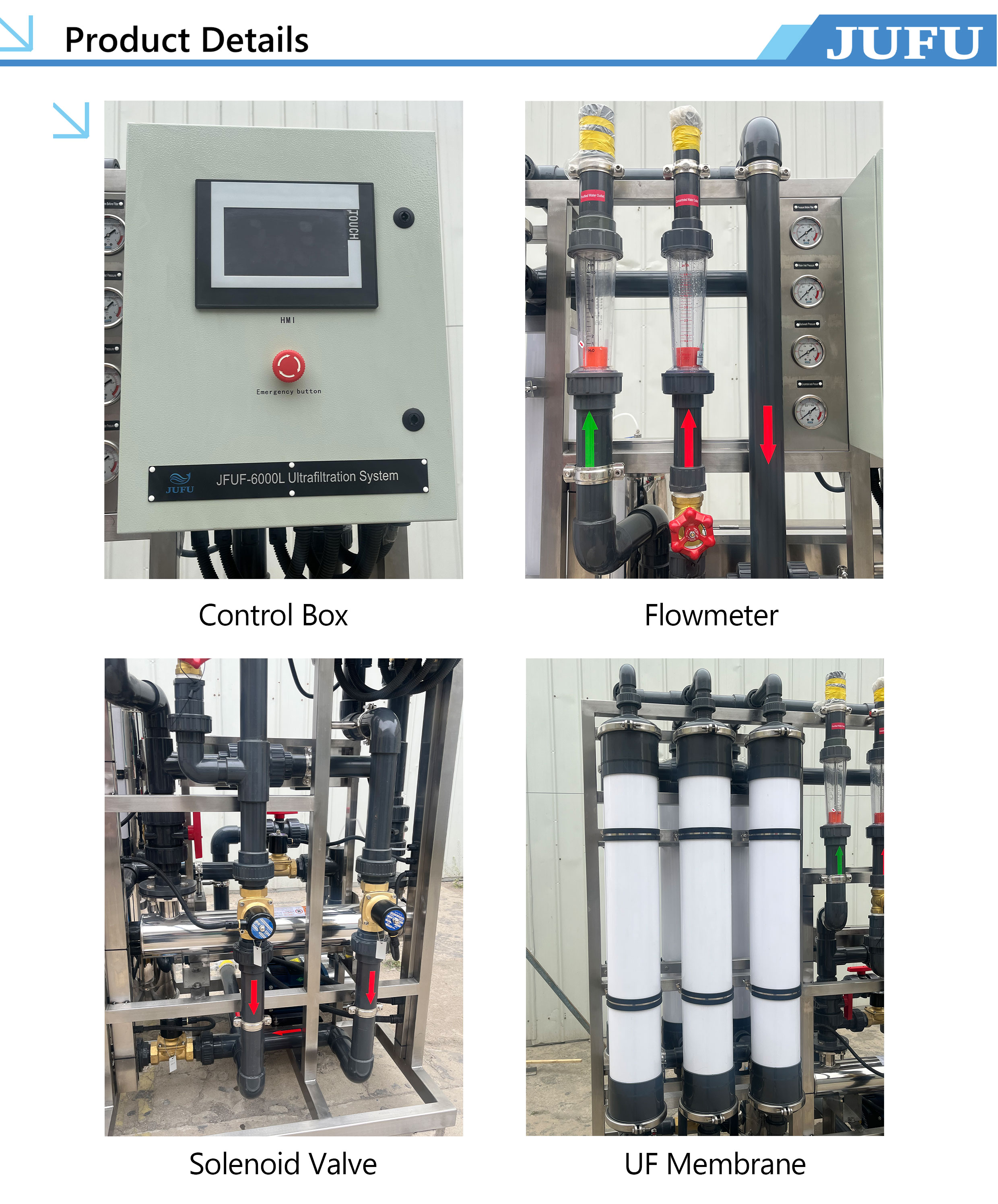

Photos display of Ultrafiltration Water Treatment System

FAQ:

1. What are the types of ultrafiltration membranes?

Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane

2. What is the operation mode of ultrafiltration membrane?

Operation mode: internal pressure type, external pressure type

3. What is the shell material of the ultrafiltration membrane?

Shell material: ABS, PVC, PMMA, stainless steel
