Industrial Ro Plant Desalination Portability Ro System
Product Introduction of RO Water Treatment System
RO equipment is reverse osmosis equipment. Reverse osmosis
equipment passes raw water through fine filters, granular activated
carbon filters, compressed activated carbon filters, etc., and then
pressurizes through pumps. 1/6000, 1/300 of the virus) reverse
osmosis membrane (RO membrane), so that the higher concentration of
water into low concentration water, while industrial pollutants,
heavy metals, bacteria, viruses and other impurities mixed into the
water are all isolated , so as to meet the specified physical and
chemical indicators and hygienic standards for drinking, and
produce clear to pure water, which is the best choice for the human
body to replenish high-quality water in time. Because the purity of
water produced by RO reverse osmosis technology is all the water
produced by human beings The technology is the highest, and the
cleanliness is almost 100%, so people call this water production
machine a reverse osmosis pure water machine.
Advantages of RO water treatment system:
Technical Features:
1. American ultra-low pressure roll-type composite reverse osmosis
membrane with high desalination rate and low operating pressure,
excellent water quality, low operating cost and long service life;
2. High-efficiency, low-noise, high-quality high-pressure pumps;
3. The online product water conductivity meter can monitor the
water quality at any time;
4. The product water and concentrated water are equipped with flow
meters to monitor the water output and recovery rate of the system;
5. Pressure gauges before and after the fine filter, and pressure
gauges before and after the reverse osmosis membrane can
continuously monitor the pressure difference between the reverse
osmosis membrane and the fine filter, prompting when to clean or
replace;
6. The high pressure switch protects the reverse osmosis membrane
from damage due to excessive pressure;
7. The low-pressure switch protects the high-pressure pump from
damage due to water supply stop;
8. The stainless steel regulating valve adjusts the water output
and the system recovery rate at any time;
9. The standard program automatic control system can reduce the
membrane fouling speed, prolong the service life of the membrane,
and ensure the stable and reliable water quality of the system
effluent.
Process flow of RO Water Treatment System
Raw water → Raw water tank → Raw water pump → Multi-media filter
(quartz sand filter) → Activated carbon filter → Soft water
processor → Precision filter → High pressure pump → Primary reverse
osmosis (RO) device → Purified water tank → High pressure pump →
Two Stage reverse osmosis → ultraviolet sterilization device →
water point.

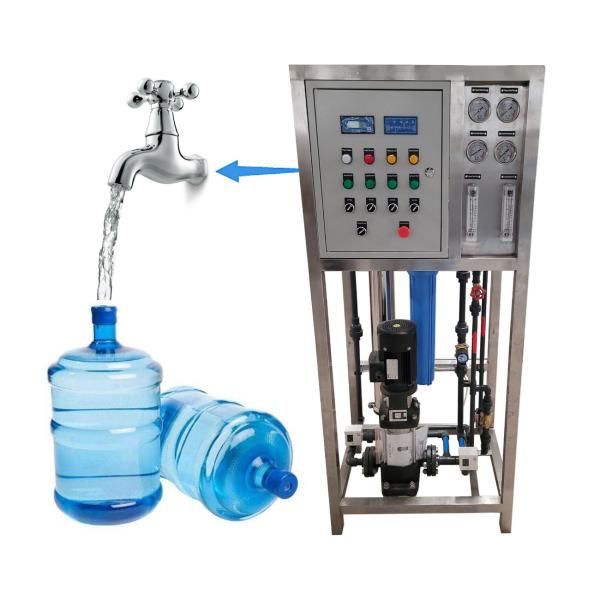

Photos of Reverse Osmosis Water Treatment System
FAQ:
1. What is the design water yield of ro membrane element? (except
anti-pollution membrane and seawater desalination membrane)
Model 4040 is designed by 0.25m3/h
Model 8040 is designed by 1-1.2m3/h
2. What is the material of mechanical filter?
Carbon steel, stainless steel, fiberglass
3.What are the multi-way control valves?
Manual control valve, automatic control valve
Multi - way control valve is divided into: filter valve and
softening valve
Automatic control valve is divided into: time type and flow type.
Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean
source, etc.
