2T RO Water Treatment Equipment For Pharmaceutical Industrial
Medical Laboratory
Description of Two-stage RO for Pharmaceutical Water Purification
System
Reverse osmosis system is using city water as raw water, then treat
water by Pre-filter (water softener is optional), reverse osmosis
membrane. It can remove particle, colloid, organic impurity, heavy
metal ion, bacteria, virus in water, and it can also remove 99%
dissolved salt. The whole system desalination rate can reach
96%-99% to make permeated water conductivity<10 us/cm.
The second stage reverse osmosis system use the first stage reverse
osmosis system output water as raw water to make water to be more
pure. Normally output water conductivity<2 us/cm.

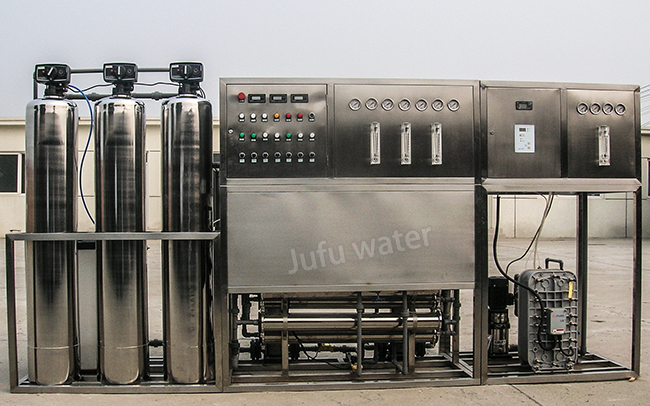

Working Process of Pharmaceutical Water Purification System
Raw water pump→ Quartz sand filter → Activated carbon filter→
Security filter→ High-pressure pump→ 1st RO system + EDI System +
UV Sterilizer
| Raw water pump | Provide the pressure to silica sandfilter/active carbon filter; |
| Quartz Sand filter | Get rid of turbidity, suspended matter, organic matter, colloid and
so on; |
| Activated Carbon filter | Remove the color, free chloride, organic matter, harmful matter and
so on; |
| Softener | Get rid of calcium and magnesium ions in original/source water,
reduce water hardness; |
| Security filter | Prevent any deposition of large Particles, most of the bacteria,
and viruses into the RO membrane, The accuracy is 5um, for holding
back any large particulates such as large iron, dust, suspended
matter, impurity; |
| High pressure pump | Provide the high pressure to RO membrane(at least 2.0 Mpa) |
| RO system | Main part of pure water treatment plant. The desaltation rate upto
99%, it is capable of removing over 99% of ions, bacterias,
particles and 98% of organic. |
Raw Water Quality Request
1. Raw water quality: after RO treatment, conductivity< 30us/cm
2. PH:7.5~9.0
3. Temperature:5~38℃
4. Inlet water pressure:0.2~0.5Mpa
5. Hardness(CaCo3):< 0.5ppm
6. Organic matters:TOC<0.5ppm
7. Oxidizer:C12<0.05ppm;O3<0.02ppm
8. Silicon:<0.5ppm(SiO2)
9. Total CO2:<3ppm
10. Particulates:< 1μm
Working Process of Pharmaceutical Water Purification System
Why Use Reverse Osmosis Equipment in the Pharmaceutical Industry?
The quality of water determines the quality of medicines, so water
is the key to making medicines. Reverse osmosis equipment is
currently the best equipment for water treatment, and it is also
the most advanced equipment in the field of water treatment today.
Therefore, reverse osmosis equipment is indispensable in the field
of medicine.
Reverse osmosis equipment is a method of selectively removing
various bacterial viruses and salts using high-tech membranes under
high pressure. The water treated by reverse osmosis equipment is
impeccable, mainly from the layer filtration treatment of water. At
the same time, the equipment is highly intelligent and the water
quality is excellent. Therefore, the application of reverse osmosis
equipment is very extensive and indispensable, not only in the
pharmaceutical industry.
Application of Pharmaceutical Water Purification System
High pure water application area
1. Ultra pure water used in laboratory study;
2. High pure water used in pharmaceutical industry;
3. Fine chemicals, high purity water in cutting-edge area;
4. Ultra pure water for precision machinery industry;
5. Ultra pure water in Electronics and semiconductor industry;
6. Condensate water treatment of power plant ( feed water for
boiler);
7. Desalted water used in the petrochemical iron and steel
industry;
8. High pure water used in cosmetic industry, surface cleaning and
surface coating;
9. High purity water for other industries, instead of distilled
water.
FAQ
Q: What is EDI (Electro deionization) ?
A: EDI (Electro deionization) is a process in which the mixed ion
exchange resin is used to adsorb the anions and cations in the feed
water, and the adsorbed ions are removed through the anion and
cation exchange membranes under the action of DC voltage.
Q: What kind of information need to be provided for product selection?
A: What ‘s the raw source of your water? If possible, please
provide Water Analysis Report.
B: What’s your request on the output capacity of the equipment?
C: What’s the application for the project?
D: What’s the piping standard applied in your local market?
E: Do you need on-site installation guidance?
