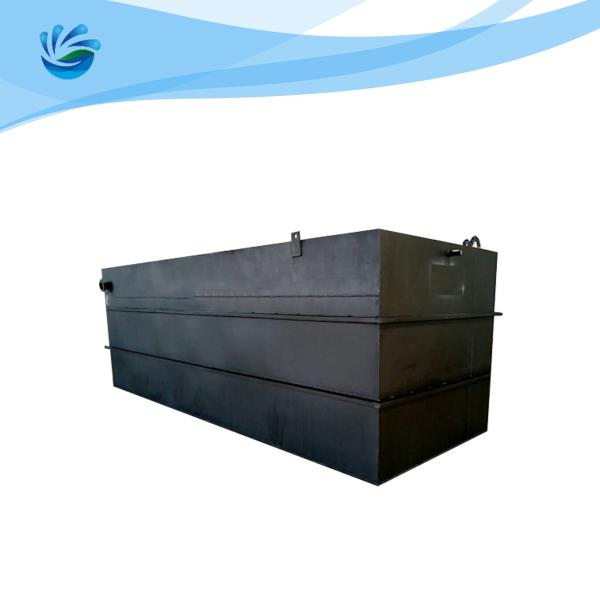

20TPD MBR Membrane Integrated Wastewater Treatment Equipment
Product Description of Wastewater Treatment System
Membrane Bioreactor (MBR) Wastewater treatment technology uses a
membrane or a ‘perm-selective’ membrane such as a microfiltration
or ultrafiltration. The membrane is porous and allows the passage
of water and dissolved solids while restricting the passage of
solid materials on the other side of the membrane.
The device is characterized by the stable performance, effective
treatment, auto control operation,easy maintenance and less
occupying space. There is no need for plant construction, neither
heating and heat preservation.The surface can be used as green land
or square land.As the most efficient sewage treatment device, it is
widely used in treating the sewage in the area of senior hotels,
villa districts and residential districts.
Advantages of Wastewater Treatment System
The MBR process has a number of significant advantages over the
conventional activated sludge method.
By removing treatment units such as primary sedimentation tanks and
clarifiers, MBR is integrated into an integrated process for
operation. No sludge settling or chemical dosing (e.g., flocculants
and coagulants) is required, thus also eliminating the chemical
dosing system required in the conventional case. In addition, by
eliminating the sludge settling tank, which is greatly affected by
sludge concentration and properties, the number of sampling and
analysis tests can be taken. Overall, the MBR process can
effectively reduce the workload, while the MBR process is easy to
operate and stable in operation, so many MBR projects are operated
by part-time technical service personnel who operate the MBR system
via remote and on-site control systems.
Technical Specification of Wastewater Treatment System
| Model | Volume of water treated(m3/d) | Dimension L×W×H(m) | Weight(t) | Running Weight(t) | Power Installed(KW) | Running Power(KW) |
| JFWS-M-5 | 5 | 2.5×1.0×1.5 | 1.43 | 6 | 4.8 | 2.95 |
| JFWS-M-10 | 10 | 2.5×1.5×2.0 | 2.2 | 11.4 | 4.8 | 2.95 |
| JFWS-M-20 | 20 | 5.0×1.5×2.0 | 3.08 | 21.36 | 4.8 | 2.95 |
| JFWS-M-40 | 40 | 5.0×2.0×2.5 | 4.29 | 34.68 | 6.6 | 3.85 |
| JFWS-M-50 | 50 | 6.0×2.0×2.5 | 4.73 | 41.16 | 6.6 | 3.85 |
| JFWS-M-80 | 80 | 9.0×2.25×2.5 | 6.6 | 67.92 | 6.6 | 3.85 |
| JFWS-M-100 | 100 | 10.5×2.25×2.5 | 7.37 | 78.96 | 6.6 | 3.85 |
| JFWS-M-120 | 120 | 12.0×2.25×2.7 | 8.58 | 96.84 | 9 | 5.25 |
| JFWS-M-150 | 150 | 12.5×3.0×2.7 | 9.79 | 122.4 | 9 | 5.25 |
| JFWS-M-180 | 180 | 13.0×3.0×2.7 | 10.67 | 138 | 9 | 5.25 |
| JFWS-M-200 | 200 | 15.0×3.0×2.7 | 12.98 | 159.24 | 12.4 | 7.3 |
| JFWS-M-250 | 250 | 18.5×3.0×2.7 | 14.3 | 195.12 | 15.8 | 9.2 |
| JFWS-M-300 | 300 | 23.0×3.0×2.7 | 17.27 | 242.4 | 15.8 | 9.2 |
Workflow Chart of Containerized Water Treatment Plant
Benefits of Containerized Water Treatment Plant
1. The hydraulic retention time is separated from the sludge age.
The MBR membrane technology can intercept all microorganisms in the
water, realize the separation of the hydraulic retention time and
the sludge age, make the operation control more flexible, and make
it possible to extend the sludge age. This is conducive to the
growth and reproduction of slow-proliferating nitrifying bacteria,
and the denitrification efficiency is greatly improved. At the same
time, because the system has a long sludge age, the amount of
excess sludge produced is very small.
2. Strong impact resistance, MBR sludge load is generally about
0.1~0.2kgCOD/(kgVSS·d), and the volume load can reach about several
thousand grams.
3. It can effectively reduce the concentration of pollutants. As a
biochemical treatment process, the MBR membrane can convert organic
matter into carbon dioxide and water, and nitrogen pollutants can
be converted into nitrogen. It can also reduce the conductivity of
raw water, which makes the subsequent membrane treatment process
load a lot Alleviate, prolong the life of the membrane, increase
the water production rate, and reduce the concentration of the
concentrated solution.

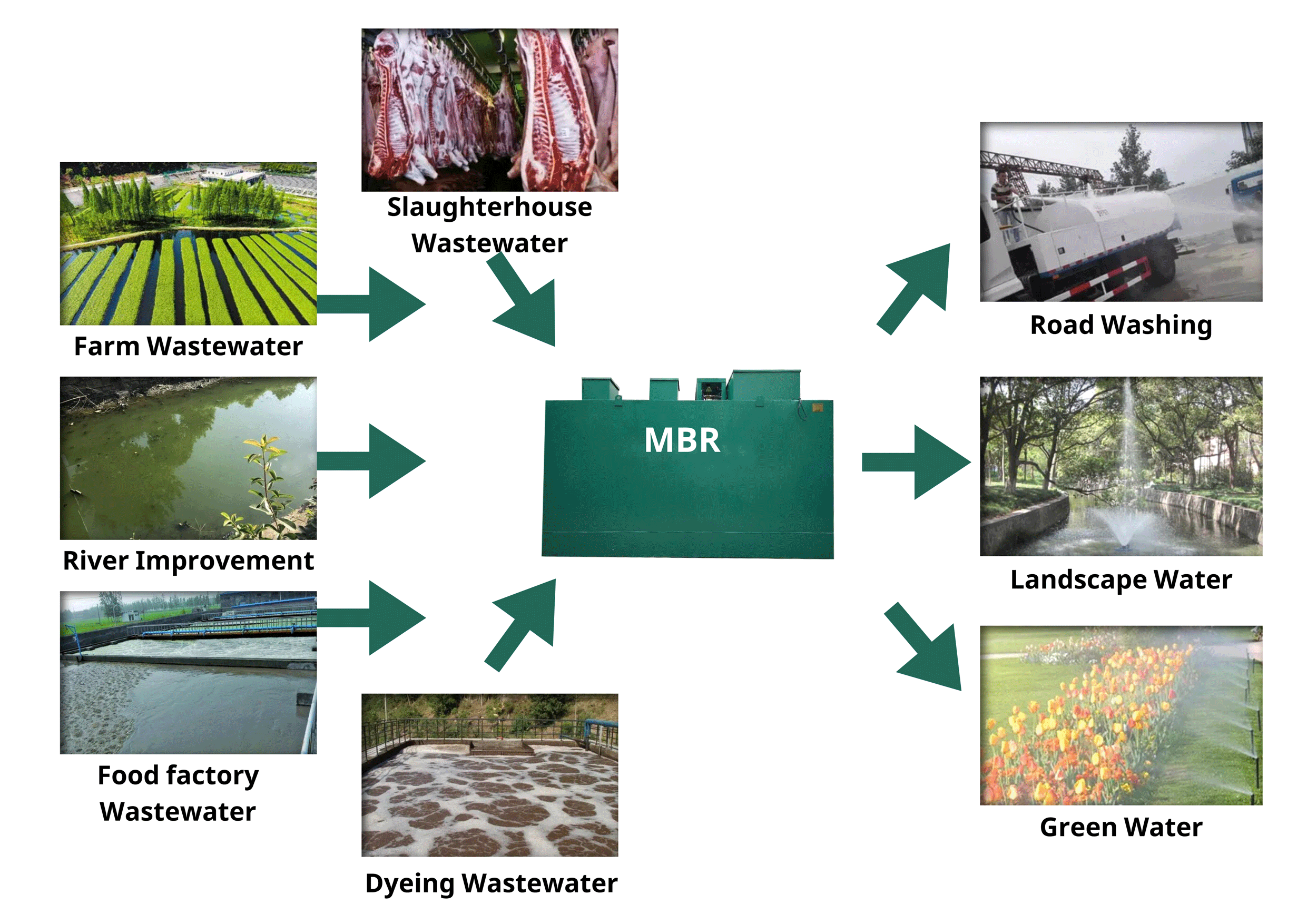

Applications of Containerized Water Treatment Plant
Cleaning and recycling water used in the mining process
Mining – supplying mine workers with clean drinking water
Municipality water supply for rural areas
Schools in rural areas
Remote areas
FAQ
Q: What kind of information need to be provided for product
selection?
A: What ‘s the raw source of your water? If possible, please
provide Water Analysis Report.
B: What’s your request on the output capacity of the equipment?
C: What’s the application for the project?
D: What’s the piping standard applied in your local market?
Q: How can I choose the products which can be perfectly match my
case?
A: Tailor-made solutions will be provided by Jufu’s professional
engineer based on your requirements.
All the pain-points of the project will be highlighted and solved
for overall optimization.
Q: What’s the leadtime?
A: It depends. 3-5 weeks for general products.
Q: What’s your warranty?
A: Jufu offers 1 year warranty for the products.
The product itself can work for 5 years with proper use and
maintenance.
