Complete Reverse Osmosis System Ro Water System Water Treatment Plant

Product Introduction of RO Water Treatment System

Reverse osmosis system (RO) is a kind of water treatment machinery that uses semi permeable membrane to remove salt under the action of pressure difference. It is opposite to natural osmosis, so it is called reverse osmosis, also known as reverse osmosis. According to the different osmotic pressure of various materials, reverse osmosis machine can be used to achieve the purpose of separation, extraction, purification and concentration. Reverse osmosis can remove more than 97% of the dissolved salts and more than 99% of the colloids, microorganisms, micro materials and organic matters in water. It is characterized by low energy consumption, no pollution, simple process, high effluent quality, and easy operation and maintenance.

The Basic Working Principle of RO Water Treatment System
After a special high-pressure pump, when the raw water is added to a pressure of 6-20 kg, the raw water permeates through the reverse osmosis membrane with a pore size of only 0.0001 microns under the action of pressure. Chemical ions, bacteria, fungi, and virions cannot pass through, and are discharged with wastewater. Only water molecules and solvents with a volume of less than 0.0001 microns are allowed to pass through.

Technical Specifications of RO Water Treatment System

Application fields of RO water treatment system
Water treatment system treat raw water in several procedures in order to meet the bottled drinking water standard.
This system uses water pressure pump to increase the water supply pressure; sand filter is used to remove Plankton, Moss, Suspension, Colloid and so on. Active carbon filter is used to remove strange smell, chlorine, chloride, organic matter and heavy mental, lower color and optimize water quality. Sodium softer is used to remove the calcium and magnesium ions in water. Micro filter is used to remove the tiny impurity. Hollow fiber Ultra filter can remove impurity, colloid, phenolic compounds, chloride, germ and all the harmful substance, meanwhile keep all beneficial minerals in water. Reverse osmosis can move all the things in the water and to make raw water to be pure water.

Advantages of reverse osmosis:
Continuous operation, stable product water quality
No need for acid-base regeneration
No downtime for regeneration
Saves water for backflushing and cleaning
Produce ultrapure water at high yields (yields can be as high as 95%)
No regenerated sewage, no need for sewage treatment facilities
No need for acid-base storage and acid-base dilution transport facilities
Reduce the building area of the workshop
It is safe and reliable to use, preventing workers from contacting acid and alkali
Reduce operation and maintenance costs
Simple installation and low installation cost


Process flow of RO Water Treatment System
Raw water → Raw water tank → Raw water pump → Multi-media filter (quartz sand filter) → Activated carbon filter → Soft water processor → Precision filter → High pressure pump → Primary reverse osmosis (RO) device → Purified water tank → High pressure pump → Two Stage reverse osmosis → ultraviolet sterilization device → water point.

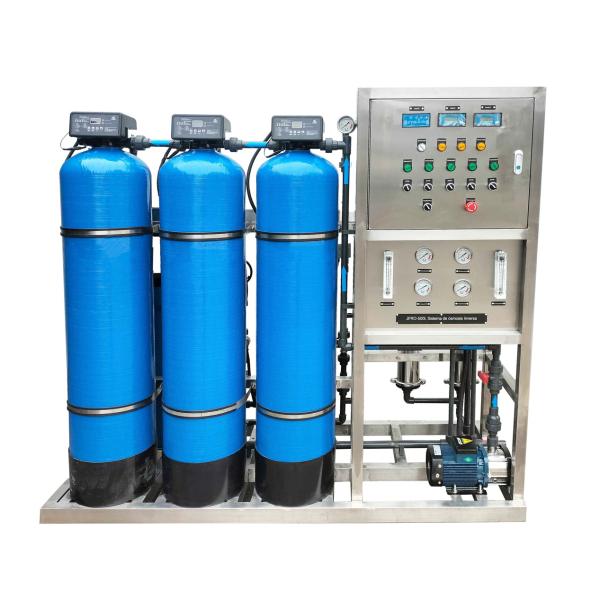

Photos of reverse osmosis water treatment system

FAQ:

1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h

2. What is the material of mechanical filter?

Carbon steel, stainless steel, fiberglass

3.What are the multi-way control valves?

Manual control valve, automatic control valve

Multi - way control valve is divided into: filter valve and softening valve

Automatic control valve is divided into: time type and flow type.

Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.

Jufu Water is a Hi-tech enterprise which specialized in integrating Research & Development, Manufacturing, Sales, Engineering installation and Consulting on water treatment and water purification equipment and technologies.

Jufu has strong power on know-how solution providing. The water business including water and wastewater treatment equipment supply, industrial process water, recycling and reuse solutions.

The main category of the products not limited to:

Ultrafiltration equipment, Nano-filtration equipment, Reverse osmosis equipment, EDI electric desalination equipment, Direct piped drinking water equipment, Medical purified water equipment, Water softening equipment, MBR integrated wastewater treatment equipment, Waste permeates treatment equipment.

Jufu Water Tech has supplied our water purification and water treatment equipment products and service to more than 30 provincial and cities in China domestic market based on our reliable quality, reasonable price and perfect after-sales service network. With the aim of “Water Treatment Equipment Expert Worldwide!”, Jufu has successfully promoted its product into the global Water purification and water treatment field. Right now products from Jufu has successfully access to Southeast Asia, Middle East, South American and Africa market.

In the future, Jufu will continue to move forward with relentless efforts, and actively advocate "Safe, Clean and Pure" to achieve business vision of being a Top-class Water purification and water treatment products manufacturer, and an excellent Water engineering service provider
