Mobile Drinking Water RO Water Treatment Plant In Container Shape
Product Description of Containerized Water Treatment Plant
Jufu's Containerized Water Treatment Plant integrated water
pretreatment RO water treatment system. After the whole process,
99% of dissolved salts and harmful substances, such as particles,
colloid, organic impurities, heavy metal ions, bacteria, viruses
and heat sources, can be removed. The desalting rate of the system
is 96-98%.
Specification of Containerized Water Treatment Plant
| Model | JFRO-2000L |
| Host Size | 2700x600x1600mm (can be customized) |
| Power | 3KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 67% |
| Designed Water Inlet | 3000L/h |
| Outlet Flow | 2000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 4040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 8 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | SS/FRP |
| Number of Membrane housing | 4 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
Working Process of Containerized Water Treatment Plant
Features of Containerized Water Treatment Plant
Reverse Osmosis is a physical method to desalinate and purify water
containing salt under room temperature without phase change. At
present, the desalination rate of ultra-thin composite membrane
elements can reach more than 99.9%, and can simultaneously remove
colloids, organic matter, bacteria, viruses from water. No chemical
waste discharge, No waste acid and alkali neutralization process,
no environmental pollution.
Application of Containerized Water Treatment Plant
Containerized water treatment plants are the multifunctional
solution provider to treat water in rural areas, schools, mining
sites.
The containerized water plant is secure and a compact purification
plant that can be relocated if needed.
Characteristics of Containerized Water Treatment Plant

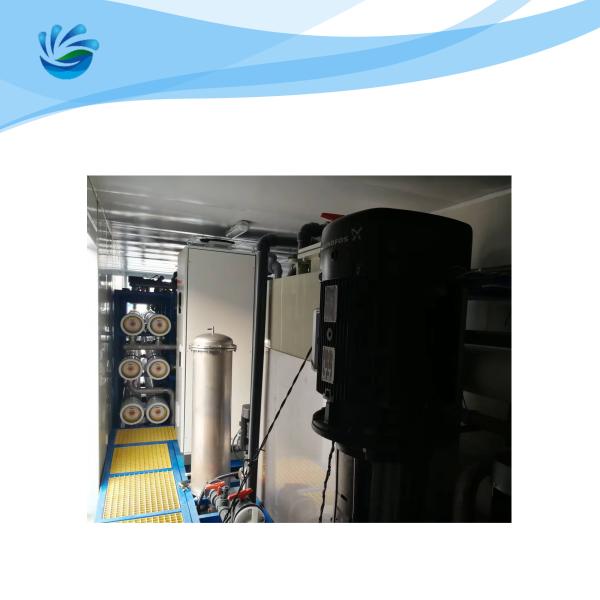

Containerized water treatment plant does not only include the
container, it includes the complete installation of the plant:
Connected piping between equipment pumps, vessels, skids, tanks
Cabling and wiring of pumps and instrumentation inside the
container to main control cabinet.
1. Stable Performance: Mature technology in Water Treatment
industrial over a decade.
2. High effiency in water filtration: Multiple pre-treatment
filtering process can guarantee high quality of the producing water
and protect the vital part of RO membrane and energy recovery
devices.
3. Longer lifespan: The key parts of the products are made by
durable materials, no matter indoors or outdoors, it has longer
lifespan to combat with harsh environment.
4. Easy Installation and commissioning: The containerized Water
Treatment Plant can be installed before delivery.
5. Quick Restoring: The standard parts can be replaced if
malfunction occurs, the system can be restarted and restored very
quickly.
6. Tailor-made Solutions: Customized features can be added per
customer's request
FAQ
Q: What's the advantages of containerized water treatment plants?
A: Containerized water treatment plants will have water treatment
equipment preinstalled in the container. Less operational time and
cost.
Q: What is containerization of water treatment equipment?
A: We can design and deliver our systems in insulated 20 ft or 40
ft containers. Containerization includes all piping and fittings
connected, all cables and wires connected to instrument and control
cabinet. This is a “plug and play” unit supply.
Q: What’s the leadtime?
A: It depends. 3-5 weeks for general products.
