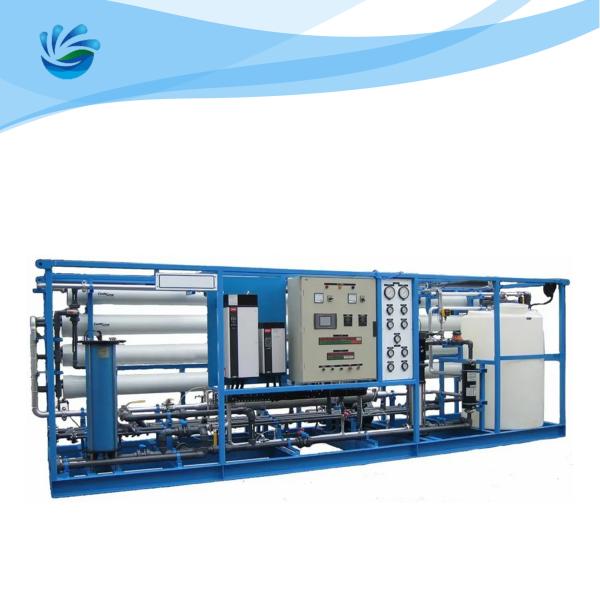

Seawater Desalination Equipment 8000LPH RO Water Purification Plant
PLC Control
Description of Seawater Desalination RO System
The reverse osmosis(RO) process is the core process of seawater
desalination and is mainly used to treat the salt water with high
TDS than 10000ppm. It consists of a High pressure pump followed by
an Energy Recovery device and the Reverse Osmosis Membranes. In
this process sea water is forced against semi-permeable membranes
under pressure in a continuous flow condition. The high salt
content of sea water requires that the operating pressure for
Reverse Osmosis must be between 60-70 bar. As the water permeates
through the membrane most of the dissolved impurities removed and
99.5% of the total salt is removed. The impurities are left behind
in the flowing water and the concentrated stream from the membranes
is discharged to the ocean.
Raw water: Seawater TDS more than 20000ppm;
Capacity: 1000GPD or according to customers's requirements;
Output Water Application: Who drinking water standard, or according
to customer's requirements.
Seawater Desalination RO System Specifications
| 1 | Water Pump | CNP/NYP/Grundfos (Optional) |
| 2 | Tank/Vessel | Stainless steel 304 or Fiber glass (Optional) |
| 3 | RO membrane | DOW /Hydranautics/Toray/ Vontron (Optional) |
| 4 | CIP system | CNP/Grundfos brand (Optional) |
| 5 | PP filter | Stainless steel 304 or Fiber glass (Optional) |
| 6 | PLC control | (Optional) |
| 8 | Pipeline | Stainless steel 304 or U-PVC (Optional) |
| 9 | Production capacity | 8000L/H |
Working Process
Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→ sodium-ion exchanger(water softener)→ security filter→ high pressure pump→ Reverse osmosis→ Ozone sterilizer(UV sterilizer)
How to Choose the Apposite Seawater Desalination Machine?
1. First you can tell us what your raw water source is.
2. What kind of water quality requirement you want to achieve.
3. How many liters you need for this RO device.
4. Any questions you don't understand, you can consult us at any
time, we have an excellent team of engineers.
5. We also offer you OEM service. We can design the machine
according to your requirements, such as material, power, etc. At
the same time, our engineers will give you our professional advice.
Material of Reverse Osmosis System?
We have different material for different application. Befor
choosing RO system please contact with our pro-fessional technical
service.
- Tanks: SS304
- Pipes: SS304
- Frame: Stainless Steel 304
- Filter Housing: SS304
- Membrane Housing: FRP
Reverse Osmosis Membrane Element
It is mainly responsible for removing soluble salts, colloids,
organic matter and microorganism in water. It can remove more than
97% of ions in water, and can also effectively remove TOC and
endotoxin, with a TOC removal rate of 90%.
Product Details
FAQ
Q: What is the Seawater Desalination RO System?
A: The core process of desalination is the Reverse Osmosis Process,
mainly used to treat the salty water with high TDS more than
10000ppm.
Q:How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional
engineer based on your requirements.
All the pain-points of the project will be highlighted and solved
for overall optimization.
Q: What’s your payment terms?
A: Deposit in advance and balance before delivery.
